Standing a metre high and capable of seriously sonorous sounds, the DALI OPTICON 6 is a master of music that delivers thunderous bass and perfectly pitched mids and highs in unequalled equilibrium.
OPTICON 6 has all the virtues of the OPTICON 5 with the added power of an extra 6 inch woofer.The featured twin 6 inch low-loss Wood Fibre Woofers complete with our unique SMC magnet motor system, assisted by our combined Soft Dome and Ribbon Tweeter module, delivers audio with wow-factor. Combined with the extended internal cabinet volume, the OPTICON 6 reaches lower into the deep bass producing an even more impressive broader soundstage.
Its high sensitivity and even impedance load together with its impressive ability to reproduce undistorted audio makes the OPTICON 6 the perfect balance between size and performance.Add in gold-plated bi-wiring terminals, and the OPTICON 6 is the sender of soul-moving music to the ears of those that demand more.
Legacy
The OPTICON 6 features the same low-loss Wood Fibre Woofers found in our flagship EPICON series, alongside our unique SMC (Soft Magnetic Compound) magnet motor system and a reworked version of our Hybrid Tweeter module also found in the RUBICON, all of which works together along with individual bass reflex ports for each woofer to produce audio exactly as the recording artist originally envisioned it.
HAND-ASSEMBLED
The mounting of the drivers and the final tests and approvals on each and every speaker is also handled directly at our own assembly lines in our Danish factory.
DALI DRIVERS
All elements of the DALI drivers are designed, produced and manufactured in-house in DALI.
DALI MDF CABINETS
Keeping the manufacturing of the OPTICON series firmly in the hands of DALI we utilize our large and efficient woodworking facility in Denmark to handle everything from cutting out the Medium Density Fibre board (MDF) cabinet to applying the vinyl.
SMC-TECHNOLOGY
In the OPTICON woofer magnet motor system the pole piece is purely constructed of SMC. SMCs unique ability to deliver a high magnetic conductivity and a very low electrical conductivity delivers all the wanted qualities of a really good speaker magnet without the traditional downsides.

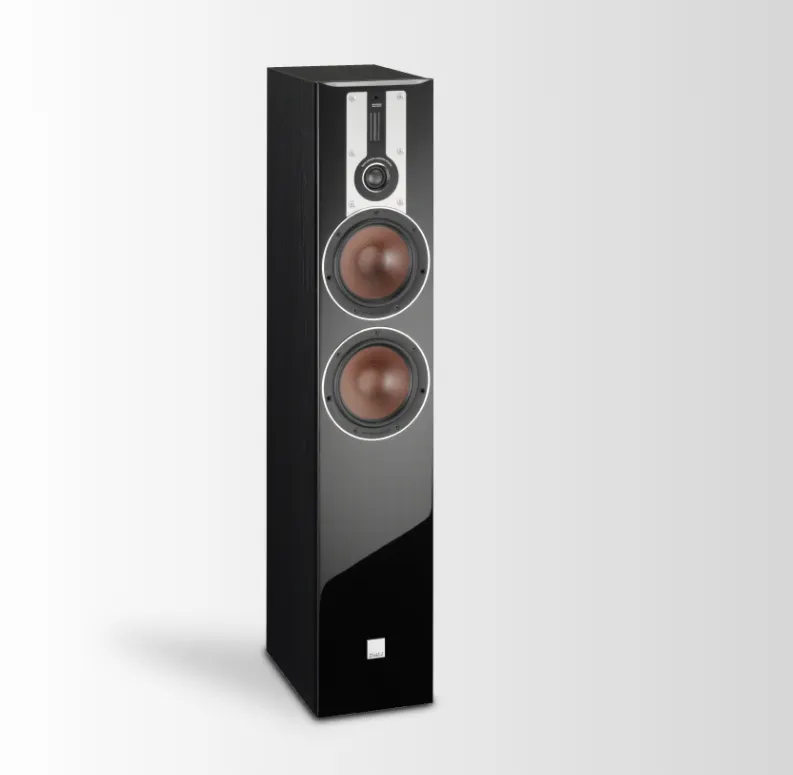

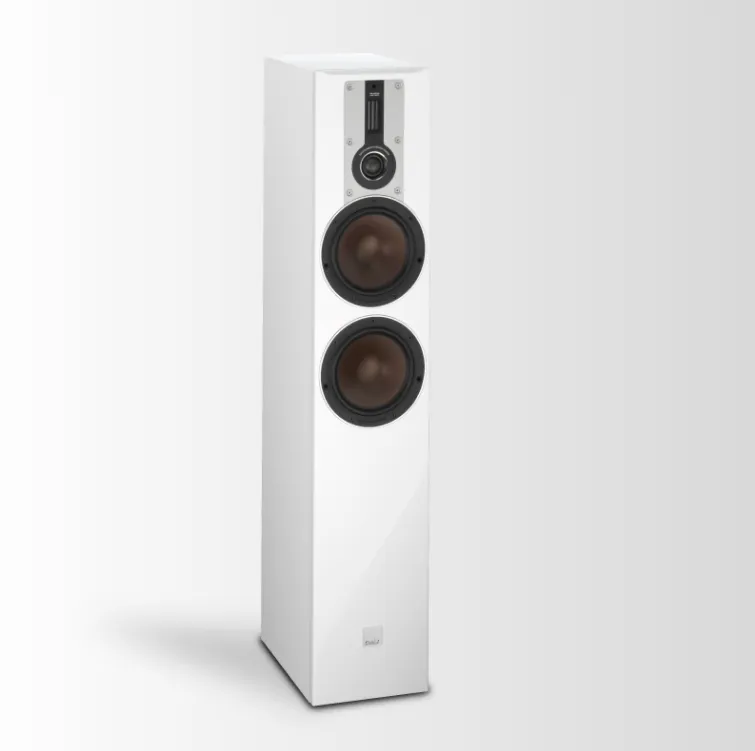

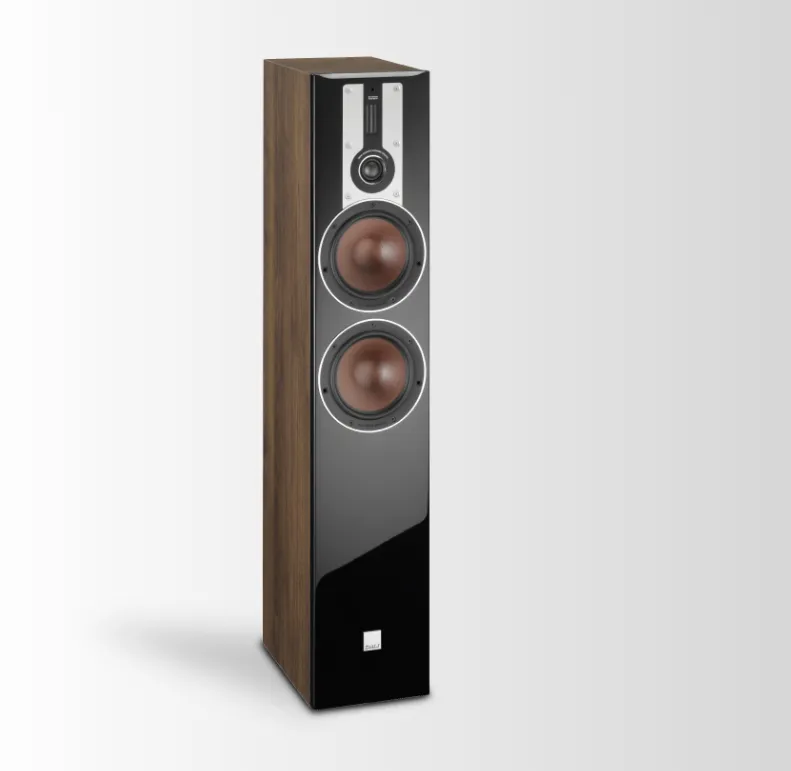

- Available in black/white/light walnut
| Product series | OPTICON |
|---|---|
| Frequency Range ( /-3 dB) [Hz] | 49 32,000 |
| Sensitivity (2,83 V/1 m) [dB] | 89.0 |
| Nominal Impedance [ohms] | 4 |
| Maximum SPL [dB] | 110 |
| Recommended Amplifier Power [W] | 25 200 |
| Crossover Frequency [Hz] | 800 / 2,200 / 14,000 |
| Crossover Principle | 2 -way |
| Hybrid tweeter module, Super high freq. driver, Quantity | 1 x 17 x 45 mm |
| Hybrid tweeter module, Super high freq. driver, Diaphragm type | Ribbon |
| Hybrid tweeter module, High frequency driver, Quantity | 1 x 28 mm |
| Hybrid tweeter module, High frequency driver Diaphragm type | Soft Textile Dome |
| Midrange driver, Quantity | 2 x 6 1/2 |
| Midrange driver, Diaphragm type | Wood Fibre Cone |
| Enclosure type | Bass Reflex |
| Bass Reflex Tuning Frequency [Hz] | 42.0 |
| Connection Input | Bi-Wiring |
| Magnetic Shielding | No |
| Recommended Placement | Floor |
| Recommended Distance From Wall [cm] | 20 100 |
| Dimensions With Base (HxWxD) [mm] | 1000 x 195 x 330 |
| Weight [kg] | 18.9 |
| Accessories Included | Assembly Tools Manual Rubber Bumpers Spikes M8 |
