SMALL CABINET, BIG SOUND

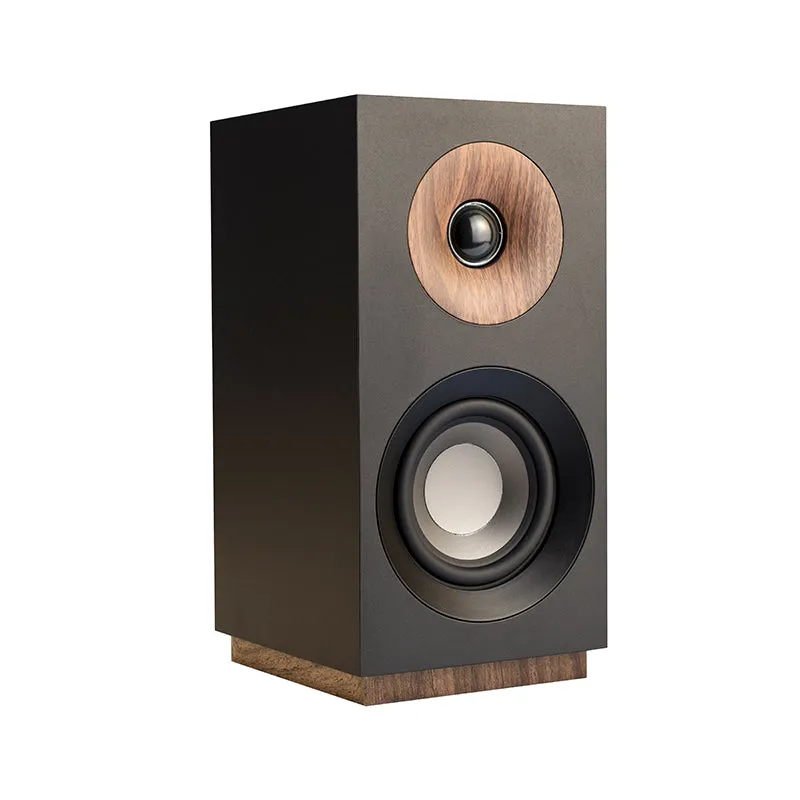

The compact cabinet of the S 801 allows for extremely versatile placement options, whether its part of a high performance home cinema, or standing alone as a 2-channel listening system in a chic, fashionable living space.Engineered to belie its small cabinet size, the S 801 is specifically designed to provide exceptional output and balanced, full sound in any application despite its small stature.
COMPLETELY NEW, COMPLETELY MODERN
The new Jamo Studio 8 series has been completely reimagined to live seamlessly in modern, premium environments. Contemporary material and finish choices accentuate the clean, minimalist lines of this European design, while the compact cabinet designs are an ideal solution for urban living environments around the world.
MAGNETIC GRILLES
Fully magnetic grilles no mounting holes or push pins for a clean, minimalistic front baffle design, while the large woven linen grille cloth creates visual interest with heavy texture.
SPECIFICATIONS
| Frequency Response | 76Hz 26kHz ( /- 3dB) | |
| Sensitivity | 85dB (2.83V @ 1m) | |
| Power Handling | 60W / 120W | |
| Impedance | 8 Ohm | |
| High Frequency Driver | 25mm (1) Soft Dome Tweeter | |
| Low Frequency Driver | 102mm (4) Polyfiber Woofer | |
| Crossover Frequency | 2kHz | |
| Speaker Enclosure | MDF | |
| Enclosure Type | Bass Reflex via Rear Firing Slot Port | |
| Inputs | Single Binding Posts | |
| Finish | Black, Walnut, White | |
| Dimensions | 285mm x 156mm x 163mm 11.22 x 6.14 x 6.42 | |
| Features: | Compact Size, 1 Aluminized Polyfiber Woofers,1 Soft Dome Tweeter | |
| Weight | 6 lb (2.7 kg) |
